MANUFACTURER & SUPPLIER | B2B LAPAROSCOPIC INSTRUMENTS

Hysteroscopy Instruments
Manufacturer, Supplier and Exporter in India

Bharat Surgical offers reusable hysteroscopy instruments for hospitals, gynecology centres, surgical distributors and medical-equipment importers. The range includes diagnostic and operative sheath configurations, obturators, flow connections and compatible hysteroscopic electrodes.

Each instrument must be selected as part of a complete hysteroscopy system. Telescope diameter, viewing angle, sheath interface, working-channel size, inflow and outflow arrangement, electrode type, cable connection and electrosurgical generator compatibility should all be confirmed before an order is placed. The currently published range identifies 2.9 mm diagnostic sheaths, Stryker-type diagnostic sheaths, Batuchi-type sheaths and 5 Fr monopolar and bipolar electrodes. Availability, configuration and compatibility should be reconfirmed at the time of quotation. View Bharat Surgical’s hysteroscopy instrument range.

Request B2B Quotation Send Requirement List
ISO 13485:2016 Certified
40+ Years Experience
Mumbai Warehousing
Hysteroscopy Instruments surgical instrument on a clean clinical blue background
Clinical Application

What Are Hysteroscopy Instruments?

Hysteroscopy instruments are used with a hysteroscope to examine or perform an authorised procedure within the uterine cavity. A working system may combine a rigid telescope, diagnostic or operative sheath, obturator, fluid connections, light transmission equipment and compatible mechanical or electrosurgical instruments.

A diagnostic arrangement is generally selected for visual examination. An operative arrangement provides a working channel through which compatible instruments or electrodes may be introduced. An official KARL STORZ overview similarly distinguishes hysteroscopes, resectoscopes and related systems for diagnostic and operative hysteroscopy. See the KARL STORZ hysteroscopy overview.

Visual Examination vs. Operative Entry

Diagnostic sheaths provide the primary flow path for distension fluids to expand the uterine cavity for clean visual access. Operative sheaths include accessory ports specifically designed to slide mechanical forceps or electrosurgical loops into the physician's active field of view.

Product Categories

Explore Our Hysteroscopy Instruments

Each instrument must be selected as part of a complete hysteroscopy system.

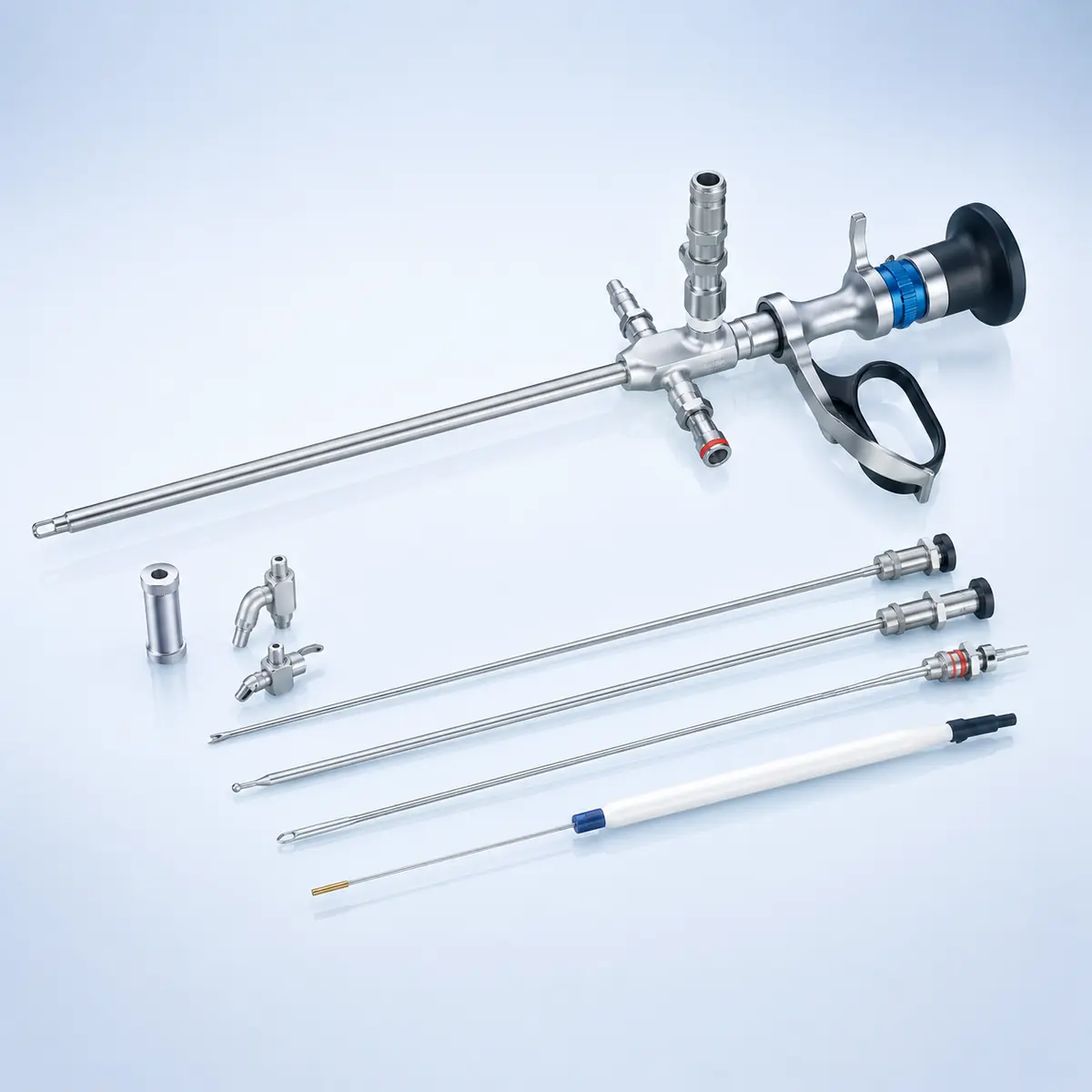

Hysteroscopy Monopolar Electrode

Bharat Surgical manufactures and supplies stainless-steel hysteroscopy monopolar electrodes for hospitals, gynecology departments, distributors and export buyers.

Read More

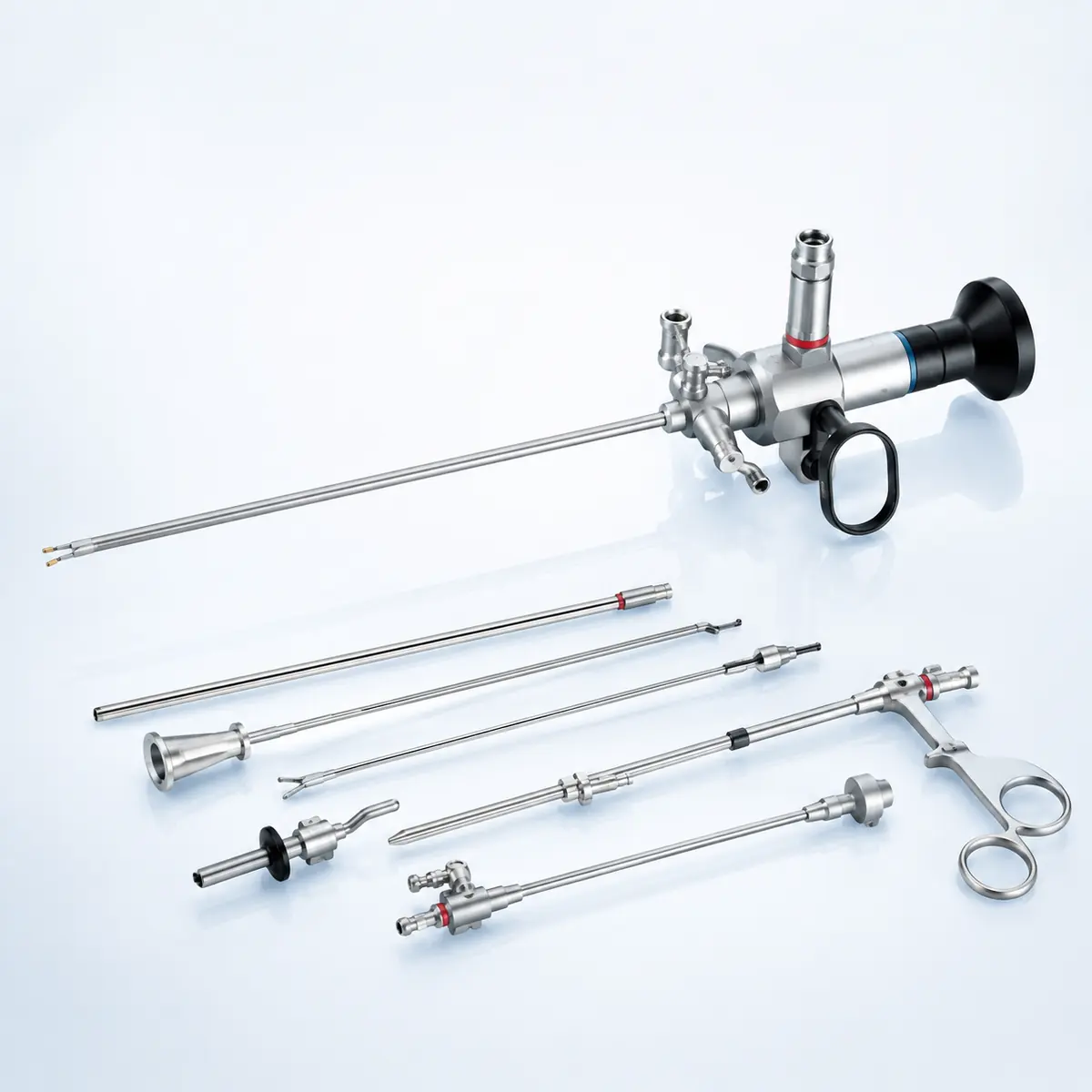

Hysteroscopy Bipolar Electrode

Bharat Surgical supplies stainless-steel hysteroscopy bipolar electrodes for hospitals, gynecology departments.

Read More
System Engineering

Components of a Hysteroscopy System

System component Primary purpose Details to confirm
Rigid telescope Provides endoscopic visualisation Diameter, length, viewing angle and connector interface
Diagnostic sheath Houses the telescope for examination Telescope fit, outer profile and flow arrangement
Operative sheath Adds a channel for compatible instruments Telescope size, working-channel capacity and flow design
Obturator Supports insertion of the compatible sheath Exact sheath series, profile and locking interface
Inflow/outflow ports Connect the approved fluid-management arrangement Port style, tubing connection and stopcock configuration
Mechanical instrument Enables an authorised grasping, cutting or biopsy function Diameter, length and working-channel compatibility
Electrode Connects with a compatible electrosurgical system Monopolar/bipolar technology, size, connector and generator
Light cable and camera Connect the telescope to the imaging platform Coupler, light-post type and equipment compatibility

A working channel can permit the introduction of appropriately sized instruments, but its presence does not make every instrument compatible. The telescope, sheath and accessory combination must be checked as one system. KARL STORZ explains the role of a hysteroscope working channel.

Hysteroscopy Instruments Details

Diagnostic and Operative Hysteroscopy Sheaths

Feature Diagnostic sheath Operative sheath
Main role Visual examination Visualisation with access for a compatible instrument
Working channel May be absent or configuration-dependent Normally provided in a defined size
Flow arrangement Single-flow or continuous-flow, depending on model Model-dependent inflow and outflow arrangement
Compatible accessories Telescope, obturator and fluid connection Telescope, obturator, instruments or electrodes and fluid connection
Procurement priority Telescope fit and flow configuration Telescope fit, working-channel size and accessory compatibility

The terms “diagnostic” and “operative” describe different system configurations. Buyers should not assume that an obturator, seal, bridge, connector or electrode from one sheath series will fit another.

Hysteroscopy Instruments Details

2.9 mm Hysteroscopy Diagnostic Sheath

The 2.9 mm diagnostic sheath category is intended for use with a matching 2.9 mm telescope configuration. Depending on the selected model, the assembly may include:

Compatible diagnostic sheath
Matching obturator
Inflow or inflow/outflow connections
Locking interface for the specified telescope
Detachable components for cleaning and inspection

“2.9 mm” identifies the nominal telescope category and does not necessarily state the complete outer diameter of the assembled sheath. Buyers should request the exact sheath profile, working length and component list when dimensional limits are important.

Hysteroscopy Instruments Details

Batuchi-Type Operative Sheaths

Batuchi-type hysteroscopy sheaths are operative configurations designed to combine endoscopic visualisation with a channel for compatible instruments. Bharat Surgical’s published range includes 2.9 mm and 4 mm Batuchi-type references, including Clickline-type variants.

Before selecting a Batuchi-type sheath, confirm:

Telescope diameter and working length
Telescope viewing angle
Inner and outer sheath arrangement
Working-channel capacity
Obturator supplied with the set
Inflow and outflow configuration
Stopcock or connector style
Compatible mechanical instruments or electrodes
Reprocessing instructions for every supplied component

“Batuchi type” is a compatibility or design reference. It does not indicate manufacture, authorisation or endorsement by another brand owner.

Hysteroscopy Instruments Details

Stryker-Type Hysteroscopy Sheaths

Bharat Surgical lists a 2.9 mm Stryker-type hysteroscopy diagnostic sheath. The word “type” should not be treated as confirmation that the sheath fits every Stryker telescope or system.

Compatibility should be established using the exact:

Telescope model or catalogue number
Telescope diameter and length
Viewing angle
Locking geometry
Sheath model or required reference
Obturator and connector configuration

A sample, drawing or photographs of the existing interface may be requested when catalogue numbers are unavailable. Stryker is the trademark of its respective owner; references are used only to describe the compatibility requirement.

Hysteroscopy Instruments Details

Hysteroscopy Monopolar and Bipolar Electrodes

Bharat Surgical currently publishes stainless-steel hysteroscopy monopolar and bipolar electrodes in a 5 Fr category. Review the published monopolar electrode and bipolar electrode specifications.

Monopolar and bipolar instruments are different electrosurgical technologies and are not interchangeable.

Selection point Monopolar electrode Bipolar electrode
Electrical arrangement Current follows the approved monopolar circuit Current passes between poles incorporated in the compatible electrode system
Generator requirement Compatible monopolar generator output and cable Compatible bipolar generator output and cable
Patient return electrode System-dependent and ordinarily part of a monopolar setup Determined by the approved bipolar system
Fluid and clinical setup Must follow the generator, electrode and procedure IFUs Must follow the generator, electrode and procedure IFUs
Procurement check Electrode, cable, generator and working channel Electrode, cable, generator and working channel

Only trained healthcare professionals should select electrosurgical technology and operating settings. Always follow the device, generator, cable, fluid-management system and institutional instructions for use.

Hysteroscopy Instruments Details

Important Compatibility Checks

Hysteroscopy instruments should be purchased using a compatibility matrix rather than by product name alone.

Check Information required from buyer
Telescope Brand, model, diameter, length and viewing angle
Sheath Diagnostic or operative type, size and flow configuration
Locking interface Photographs, drawing or catalogue reference
Obturator Required sheath model and tip configuration
Working instrument Diameter or French size and working length
Electrode Monopolar or bipolar, shape, size and connector
Cable Generator-side and instrument-side connection
Generator Manufacturer, model and approved accessory list
Fluid connection Tubing, stopcock and connector requirement
Reprocessing Validated method stated in the applicable IFU

Compatibility note: Similar appearance, nominal diameter or brand-style terminology does not prove mechanical, electrical or functional compatibility.

Hysteroscopy Instruments Details

Material and Construction Considerations

Depending on the model, hysteroscopy instruments may incorporate medical-grade stainless steel, insulating materials, seals, stopcocks and detachable components.

Institutional buyers should evaluate:

Smoothness of external surfaces
Telescope-lock alignment
Patency of inflow, outflow and working channels
Security of stopcocks and connectors
Integrity of insulation on electrosurgical accessories
Availability of obturators, seals and replacement components
Instrument traceability and supplied documentation
Validated cleaning and sterilisation instructions

Exact material grades and component specifications should be requested in the technical quotation where required by a tender.

Hysteroscopy Instruments Details

Reusable Hysteroscopy Instruments

Products described as reusable must be cleaned and reprocessed according to their validated instructions for use after every clinical use. Reusable status does not mean that an instrument can be sterilised by any convenient method.

The US FDA describes reprocessing as a multistep process involving cleaning followed by appropriate disinfection or sterilisation. It also emphasises that healthcare facilities and manufacturers share responsibility for reliable reprocessing. Read the FDA’s reusable-device reprocessing information.

Cleaning & Care

General Reprocessing Considerations

Reprocessing Care Guidelines

Proper sterilization and high-level disinfection depend on meticulous pre-cleaning of all lumens and stopcock channels. Ensure that all components are fully disassembled, manually brushed, and flushed before initiating autoclave cycles.

Cleaning must precede sterilisation or high-level disinfection because retained soil can interfere with the process. The applicable device IFU remains the controlling instruction. See the CDC disinfection and sterilisation guideline.

Reprocessing Checklist
Follow the manufacturer’s current IFU for every component.
Separate detachable parts only as instructed.
Begin cleaning within the time specified in the IFU.
Flush and brush accessible lumens using validated accessories.
Keep channels open during the applicable cleaning process.
Rinse and dry all components as directed.
Inspect surfaces, channels, locks, stopcocks and seals.
Inspect electrosurgical insulation before use.
Use only a validated sterilisation cycle compatible with the device.
Record reprocessing and inspection according to facility policy.
Hysteroscopy Instruments Details

Pre-Use Inspection

Before releasing an instrument for use, authorised personnel should inspect:

The sheath for dents, deformation or blocked channels
The telescope interface for secure engagement
The obturator for correct fit
Stopcocks and connectors for movement and leakage
Seals for wear, displacement or damage
Working channels for patency
Electrode surfaces for deformation or deposits
Insulation for cuts, cracks, burns or exposed conductive areas
Cables and connectors according to their respective IFUs
Product identification and reprocessing status

Remove damaged, incomplete or incompatible components from service and follow the facility’s reporting and evaluation procedure.

Hysteroscopy Instruments Details

Hysteroscopy Instrument Set Configuration

A quotation may be prepared for an individual replacement component or a complete configured set.

Hysteroscopy Instruments Details

Example Diagnostic Set BOQ

Item Suggested Quantity
Compatible rigid telescope 1
Diagnostic sheath 1
Matching obturator 1
Inflow/outflow accessories, where applicable 1 set
Compatible light cable 1
Cleaning accessories specified by the IFU 1 set
Sterilisation tray or container, if requested 1
Hysteroscopy Instruments Details

Example Operative Set BOQ

Item Suggested Quantity
Compatible rigid telescope 1
Operative sheath 1
Matching obturator 1
Flow connectors and stopcocks 1 set
Compatible mechanical instruments As required
Compatible monopolar or bipolar electrodes As required
Approved electrosurgical cable As required
Cleaning accessories specified by the IFU 1 set
Sterilisation tray or container, if requested 1

This is a procurement template, not a clinical setup instruction. The final BOQ must be approved by the hospital’s clinical, biomedical and sterile-services teams.

Hysteroscopy Instruments Details

Choosing the Correct Hysteroscopy Instruments

Before requesting a quotation, determine the following project specifications:

Whether a diagnostic or operative configuration is required
The exact telescope brand and catalogue number
Telescope diameter, working length and viewing angle
Whether single-flow or continuous-flow configuration is required
Required working-channel capacity
Mechanical instrument sizes and functions
Monopolar or bipolar electrosurgical compatibility
Generator and cable model details
Required obturators, seals, stopcocks and adapters
Reprocessing and sterilisation requirements
Quantity and spare-component requirements
Documentation, packaging and labelling requirements
B2B Supply Channels

For Hospitals and Surgical Centres

Bharat Surgical can support purchase enquiries for:

New hysteroscopy instrument sets
Replacement diagnostic or operative sheaths
Matching obturators
Additional electrodes and compatible accessories
Department standardisation
Biomedical compatibility review
Tender and BOQ preparation
Scheduled replacement and spare planning

Hospital enquiries should include the installed telescope, camera, light source, generator and fluid-management equipment wherever these affect compatibility.

B2B Supply Channels

For Dealers, Distributors and Importers

Dealers may request:

Product-wise technical quotations
Bulk quantities
Mixed instrument orders
Private labelling, subject to agreement and applicable regulations
Export packaging
Distributor support
Product photographs and available technical documentation
Country-specific documentation review

Regulatory approval, registration, labelling and import requirements vary by market and must be confirmed before supply.

Hysteroscopy Instruments Details

Details Required for a Quotation

Please provide:

Hospital, dealer or importer name
Destination city and country
Product or set required
Diagnostic or operative application
Telescope manufacturer and model
Telescope diameter, length and viewing angle
Existing sheath or instrument catalogue number
Required working-channel size
Single-flow or continuous-flow requirement
Monopolar or bipolar electrode requirement
Generator and cable details
Required quantity
Individual components or complete set
Applicable tender specifications
Required certificates or documents
Photographs of existing interfaces, where compatibility must be matched
Hysteroscopy Instruments Details

Why Source Hysteroscopy Instruments from Bharat Surgical?

Bharat Surgical delivers premium-grade, reusable hysteroscopy instruments manufactured to ensure maximum compatibility, reliability, and precision across standard configurations.

Range of diagnostic and operative hysteroscopy components
2.9 mm and selected 4 mm sheath categories
Batuchi-type and Stryker-type configurations
Monopolar and bipolar electrode options
Supply for hospitals, dealers and international buyers
Individual replacement parts and configured-set enquiries
Compatibility-based quotation support
Bulk and export order assistance

All claims, sizes, compatibility statements, material details and supplied components should be verified against the final quotation and product-specific documentation.

Immediate Answers

Frequently Asked Questions

Find technical, reprocessing, ordering, and size compatibility answers for the Bharat Surgical Hysteroscopy Instruments range.

They are instruments used with a hysteroscope for authorised diagnostic or operative examination of the uterine cavity.

A set may include a telescope, sheath, obturator, flow connections, working instruments, electrodes, light cable and sterilisation accessories. Contents vary by configuration.

Bharat Surgical publishes diagnostic sheaths, Batuchi-type sheath configurations and hysteroscopy electrodes. Current availability should be confirmed when requesting a quotation.

It is the sheath that houses a compatible telescope and provides the specified fluid connection for diagnostic visualisation.

It is a sheath configuration that includes a working channel for appropriately sized instruments or electrodes.

A diagnostic sheath is primarily intended for visual examination, while an operative sheath provides compatible instrument access. The exact features depend on the model.

Yes. Bharat Surgical currently lists a 2.9 mm hysteroscopy diagnostic sheath.

Not necessarily. It commonly identifies the compatible telescope category. Request the assembled sheath’s exact outer profile when required.

The published product references include a 4 mm Batuchi-type sheath. Exact configuration and availability require confirmation.

It is an operative sheath configuration designed for a matching telescope and compatible working instruments. Its precise component arrangement must be verified.

No. Batuchi-type configurations are generally operative systems, while a diagnostic sheath may not contain an operative working channel.

Bharat Surgical lists a 2.9 mm Stryker-type hysteroscopy diagnostic sheath.

No. Compatibility must be checked against the telescope’s exact model, dimensions and locking interface.

No. It is a compatibility reference and does not imply OEM manufacture or endorsement.

An obturator is a matching component used with a sheath. It must correspond to the exact sheath model and interface.

No. Diameter alone is insufficient; locking geometry, length, profile and sheath series must match.

It is a model with a defined single flow or access arrangement. Exact port and channel details should be confirmed from the product specification.

It incorporates separate flow paths or connections for inflow and outflow, depending on the system design.

Availability depends on the required diameter, length, function and sheath compatibility. Include these details in the enquiry.

Yes. Bharat Surgical currently publishes a 5 Fr stainless-steel monopolar electrode category.

Yes. Bharat Surgical currently publishes a 5 Fr stainless-steel bipolar electrode category.

No. They require different approved electrical arrangements, cables, generators and system configurations.

No. Both ends of the cable, its rating and its approved generator and instrument compatibility must be verified.

No. Size, working length, tip configuration, insulation, connector, generator and sheath compatibility must all be checked.

Selected models may be reusable. Confirm the product-specific IFU, reprocessing method and stated service limitations.

Only when the applicable IFU specifically validates steam sterilisation for that product and configuration.

Follow the product IFU, including its directions for disassembly, lumen flushing, brushing, rinsing, drying, inspection and subsequent sterilisation.

Narrow channels can retain soil. They require access, flushing and inspection using the validated method stated in the IFU.

Yes. Cleaning is a necessary step before the validated sterilisation or disinfection process.

Use the inspection method stated by the manufacturer and facility. Components with damaged or questionable insulation should not be released for use.

Yes, subject to identifying the exact telescope, current sheath and required interface.

Individual components may be quoted when the compatible sheath reference is known and the component is available.

A configured set may be quoted after the telescope, sheath, working-instrument, imaging and electrosurgical requirements are established.

Price depends on the configuration, number of components, dimensions, compatibility, accessories, quantity and documentation requirements.

Bulk, dealer, distributor and importer enquiries may be submitted with the required quantities and destination.

Send the equipment manufacturer, model numbers, dimensions, viewing angle, existing catalogue references and clear photographs of the relevant interfaces.

Medical and Procurement Disclaimer

This page provides general product and procurement information for qualified healthcare organisations and medical-device buyers. It does not replace clinical training, professional judgement, institutional protocols or the product-specific instructions for use. Final suitability, compatibility, reprocessing, regulatory status and authorised application must be verified before purchase and use.

Request a Quote for Hysteroscopy Instruments

Contact Bharat Surgical with your required sheath type, telescope details, flow configuration, working-channel requirement, electrode technology, quantity and delivery destination. Providing complete compatibility information helps the team prepare an accurate technical and commercial quotation.

Request Hysteroscopy Instrument Price

Hysteroscopy instrument prices depend on specific configuration settings and order volume. For an accurate price, please send your required product, quantity, and compatibility details rather than requesting a generic set.

Factors Affecting Commercial Pricing:
• Diagnostic vs. Operative Design
• Telescope and Sheath Diameters
• Flow Channel Configuration
• Included Electrodes or Instruments
• Generator & Cable Compatibility
• Order Volume & Destination Market
Request Quote Upload Photo or BOQ
